Place of Origin : Guangdong, China
Model Number : S1-AC220V-7KW
Brand Name : KIWI
MOQ : 2
Price : $270-320
Output Power : 7 kW
Input Voltage : 200 - 220v
Interface Standard : Type-1/Type-2/GB/T
IP Protection : IP55
OCPP Version : OCPP 1.6J/1.5J
User Interface : 3.8 inch LCD or LED
Communication Protocols : Proprietary and OCPP 1.6J/2.0.1
RFID Reader : ISO/IEC 14443 A/B Mifare RFiD reader
Rated Power : 7KW、11KW、22KW
Size : 202*104*388mm
Weight : 6kg(Without column)
Input Current : Each phase 0~32A
Output Voltage : AC 220V±20%
Output Current : Each phase 0-32A
Operating Temperature : -35°C to +50°C






Item | Specification | |
Installation Method | Wall-mounted, column (optional) | |
Rated Power | 7KW、11KW、22KW | |
Charging mode | APP(QRCode)、Plug &Charge、RFID | |
Size (H * W * D) | 202*104*388mm | |
Weight | 6kg(Without column) | |
Input | ||
Input voltage | 230VAC/400 VAC/400 VAC | |
Input Current | Each phase 0~32A | |
Leakage Protection | overcurrent, overvoltage, undervoltage, ground fault, integrateed surge protection, RDC (typeA + DC6mA), over-temperature protection | |
Output | ||
Output voltage | AC 220V±20% | |
Output current | Each phase 0-32A | |
Connection method | ||
Number of plug | 1 | |
Charging connection method | 1、Connection method C (plug version) 2、Connection method B (socket version) | |
Plug wire length | 5m(customizable) | |
Plug standard | Type-1/Type-2/GB/T | |
Human-computer interaction | ||
LED | LED Status light | |
Other | ||
Protection level | IP55 | |
Operating temperature | -35°C to +50°C | |
Relative humidity | <95%,No condensation | |
Lifespan | ≥10000 times | |




|
|

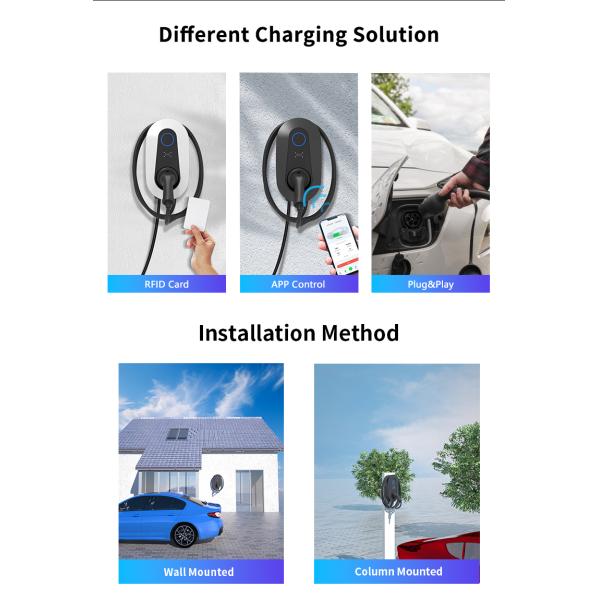

7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID Images |
